SALIENT FEATURES (Surface Preparation)

Seven tank process available with tank size 2700(1)x900(w)x1200(h) mm with stainless steel Electrical heaters for heating the chemicals

Monorail; Electrical lifting capacity 500kg provided for dipping modules and shifting from one tank to other

1. Degreasing : Remove the oil, grease &dust
      Temperature:550 C
      Timing:10 min
      Solution: Adverelen 22-32
2. Rinsing : Washing in running water
      Time : 2 Min
3. Degusting : Remove the rust
      Temperature: Room temperature
    : Timing: 10-15 min
      Solutions: Adwapickle 35-10
4. Rinsing   Washing in running water
      Time: 2 min
5. Phosphating : Make the clean surface for best quality of power coating
      Temperature: Room temperature
      Timing: 10-15 min
      Solution: Adwabond 4115 + Tooner
6. Rinsing : Washing in running water
      Time: 2 min
7. Passivation : Temperature: Room temperature
      Timing: 2 min
      Solution: Advaseal 621

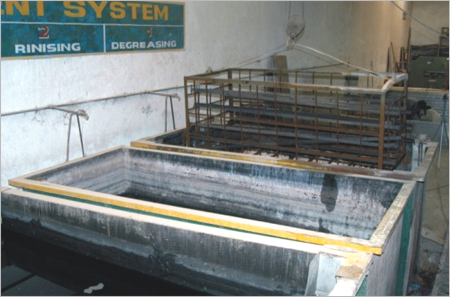

7 Tank Process for surface Treatment
